PCX垂直循環類立體停車庫是通過使載車板作上下循環運動，實現車輛多層存放的垂直循環式停車設備。垂直循環式停車設備一般適用于高層辦公樓、住宅、醫院、綜合商業建筑等用地緊張的工程、新建獨立式車庫及老城改造。

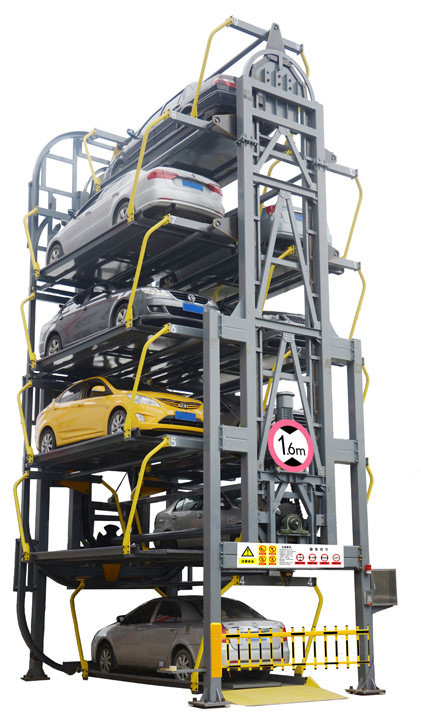

PDX Multi-floor Circular Parking System is making the car plate circular motion up and down, to achieve multi-store. YPCX Vertical Circulating Parking  is suitable for high density areas such as office buildings, residences, hospitals, commercial buildings.

產品特點

1.占地面積小，兩個泊車位面積可停6~10輛車；

2.價格低，外裝、消防等投資少，建設周期短；

3. 外裝修可只加頂棚，消防可以利用消防栓；

4. 結構簡單，運行可靠；

5.不需要強制通風，無需大面積照明，節約能量

Product Features

1.High land-use ratio，a two vehicles land area can park 6 to 10 vehicles;

2.Low price，few investment of external decoration and firefighting equipment;

3.You can only add  a ceiling for the external decoration，and use  fire hydrant as the firefighting equipment；

4.Simple structure and reliable running.

5.Does not require forced ventilation, no need large area lighting, saving energy.

工作原理

通過減速電機帶動傳動機構，在牽引構建---鏈條上，每隔一定距離安裝一個存車托架，存車托架隨鏈條一起作循環運動，從而達到存取車輛的目的。

working principle：

A transmission mechanism is driven by a gear motor，on the  traction device—chains，there are parking brackets for every

certain distance，parking brackets circle with the chains，so  as to achieve access to vehicles

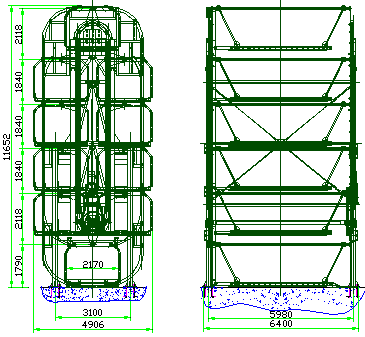

尺寸參數表（Dimension Parameter List）

性能參數表（Performance Parameter List ）
